Not to scale
02 / Dimensions
Measured information
IL-WL-RG32-BK
Body
813 H
Opening
Not stated
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
Color
3000K
Finish
Matte Black
IL-WL-RG32-BK · Outdoor Wall Lights

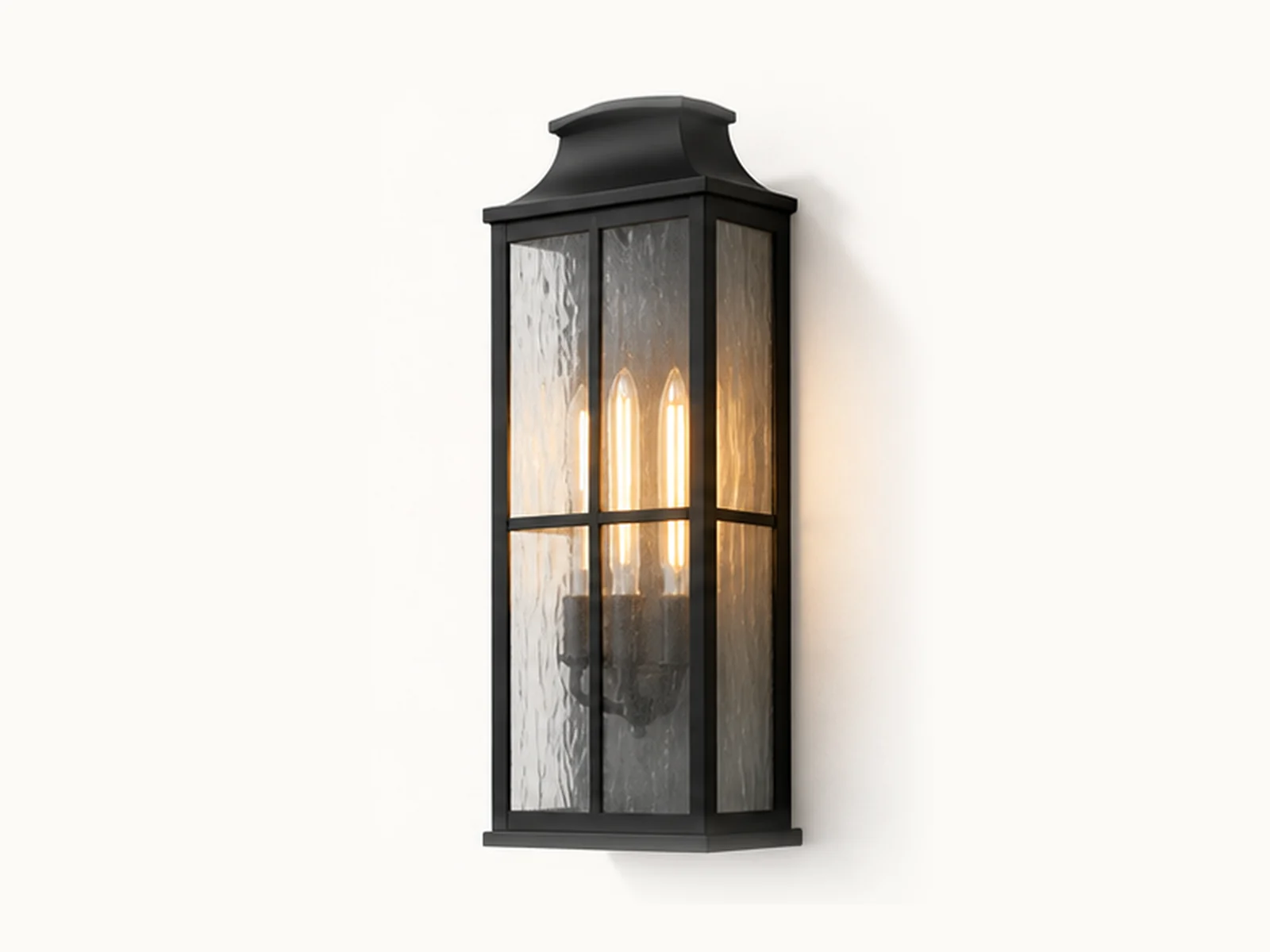

Ripple-Glass Exterior Lantern
E26 · 813 mm / 32 in · black metal + ripple glass
A tall matte-black frame with ripple glass and warm visible-lamp expression for traditional façades — formal entries, garages, porches and covered exteriors.
- Height
- 813 mm · 32 in
- Lamp base
- E26
- Construction
- Black metal + ripple glass
- Installation
- Hardwired exterior wall
- Applications
- Formal entry · garage · porch · covered exterior
- Data status
- Width / projection pending factory confirmation
Product intelligence · 2026
Technical dossier
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
Placement study · diagrammatic
01 / Application
Light that belongs to the façade
Align the fixture with openings and material joints. Confirm the beam direction, mounting plate coverage and weather seal before the wall finish is closed.
- Mounting
- Exterior surface wall installation
- Typical placement
- Entries, columns, terraces, garage walls and façade rhythms
- Light source
- E26 lamp
- Control
- Not stated
- Protection
- Not stated
- Input
- Not stated
Catalog values on fileNot required or not statedProtection data pending
03 / Construction
Conceptual assembly
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
01
Shield / decorative body
02
Optic or diffuser
03
Light engine or lamp
04
Weather gasket and thermal body
05
Mounting plate and electrical feed
Conceptual assembly · verify the manufacturer's final construction, driver and service method before procurement or installation.
Specifications
| Model | Power | Size (mm) | Notes |
|---|---|---|---|
| IL-WL-RG32-BK | E26 lamp | 813 H | Width and projection pending |
