02 / Dimensions
Measured information
ILT-R2BDR
Body
160 × 91
Opening
80 × 60
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
Color
2700K
ILT-R2BDR · Recessed Downlights

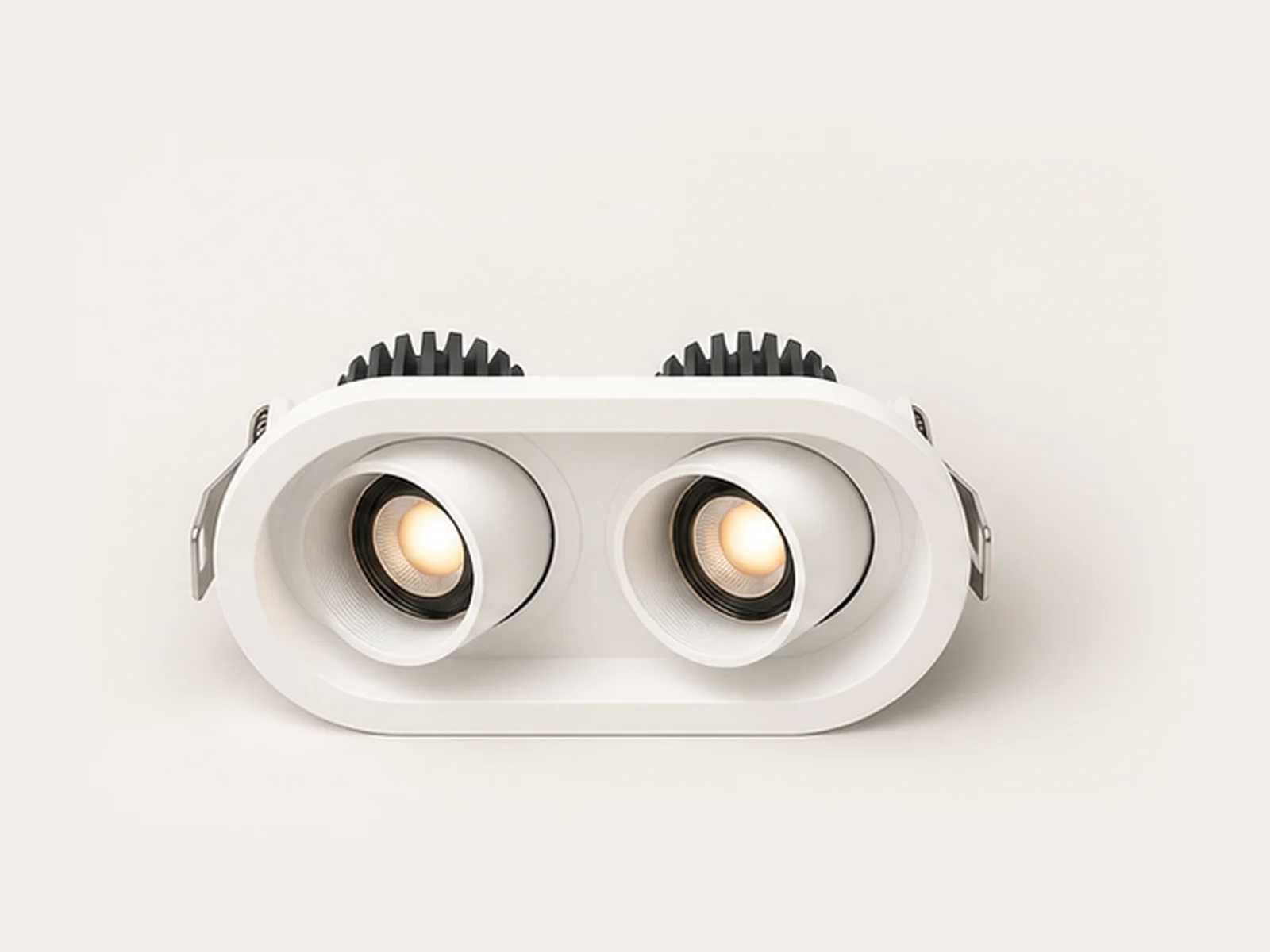

Recessed Dual Bi-Beam
18W · 2 × 9W · 2700K · CRI 90+ · TRIAC
A flush dual aperture for symmetrical accent lighting, with each beam independently aimed from the ceiling plane.
- Power
- 18W · 2 × 9W
- Input
- 120V
- Light color
- 2700K
- CRI
- 90+
- Beam
- 15° / 24° / 36° / 60° / 90°
- Body
- 160 × 91 mm · aluminum
- Cutout
- 80 × 60 mm
- Rating
- IP65
- Dimming
- TRIAC · external driver
- Life / warranty
- L70 50,000h · 2 years
- Compliance
- CE / RoHS · marine-grade finish by specification
Product intelligence · 2026
Technical dossier
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
Placement study · diagrammatic
01 / Application
Quiet ceiling integration
Use the aperture as part of the architecture: align it with the room axis, protect the cutout, and keep the visible trim subordinate to the illuminated surface.
- Mounting
- Recessed ceiling installation
- Typical placement
- Ceilings, circulation paths, task zones and general illumination
- Light source
- 18W · 2 × 9W
- Control
- TRIAC · external driver
- Protection
- IP65
- Input
- 120V
Catalog values on fileOpening values on fileProtection data on file
03 / Construction
Conceptual assembly
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
01
Trim or plaster interface
02
Optical reflector / lens
03
LED light engine
04
Thermal body / heat sink
05
Driver and ceiling connection
Conceptual assembly · verify the manufacturer's final construction, driver and service method before procurement or installation.
Specifications
| Model | Power | Size (mm) | Cutout (mm) | Beam | Color temp | IP | Input |
|---|---|---|---|---|---|---|---|
| ILT-R2BDR | 18W · 2 × 9W | 160 × 91 | 80 × 60 | 15° / 24° / 36° / 60° / 90° | 2700K | IP65 | 120V |
