Color
3000K
Finish
Silver Cup

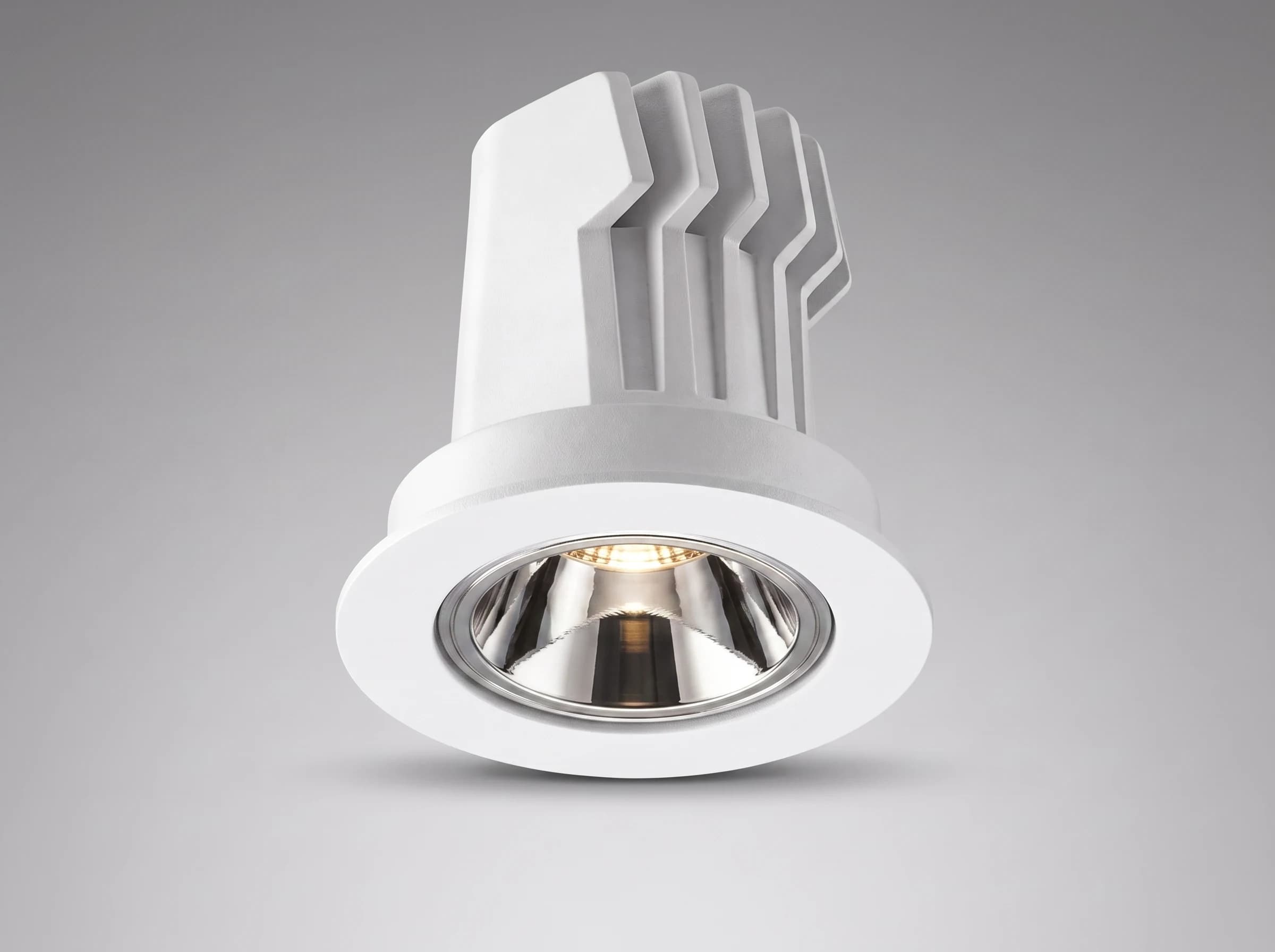

NH-75 / NH-95 / NH-125 · Recessed Downlights
9–30W · silver / gold cup · 15°/24°/38°
Jewel-finish reflector cups — silver or gold interiors that add sparkle to the aperture itself. Reflector and lens versions.
Product intelligence · 2026
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
01 / Application
Use the aperture as part of the architecture: align it with the room axis, protect the cutout, and keep the visible trim subordinate to the illuminated surface.
02 / Dimensions
NH-75
Body
Ø85 × 80
Opening
75
NH-95
Body
Ø104 × 108
Opening
95
NH-125
Body
Ø135 × 127
Opening
125
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
03 / Construction
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
| Model | Power | Size (mm) | Cutout (mm) | Beam |
|---|---|---|---|---|
| NH-75 | 9–12W | Ø85 × 80 | 75 | 15°/24°/38° |
| NH-95 | 15–20W | Ø104 × 108 | 95 | 15°/24°/38° |
| NH-125 | 25–30W | Ø135 × 127 | 125 | 15°/24°/38° |
