Not to scale

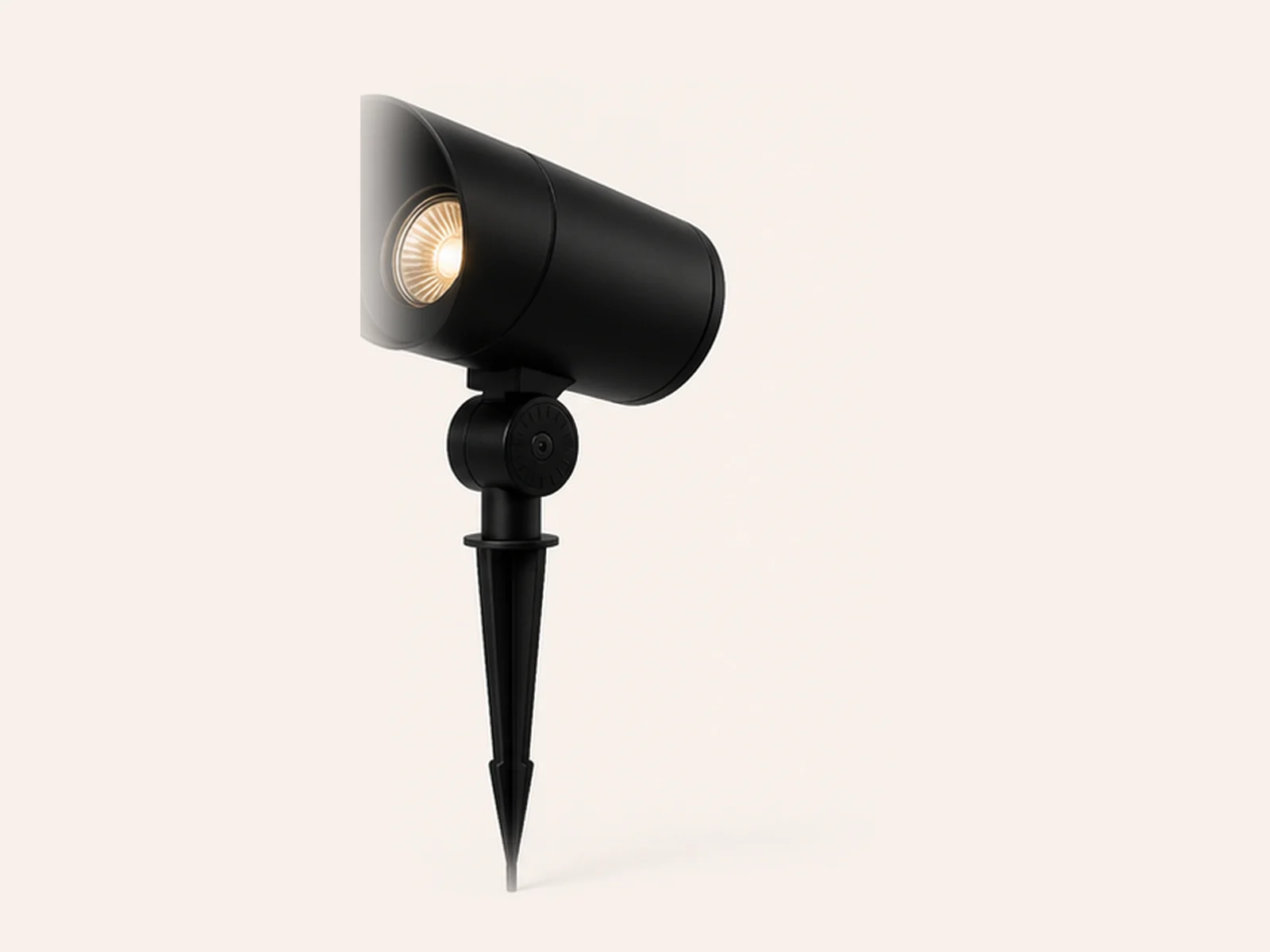

02 / Dimensions
Measured information
ILT-GL1D
Body
Ø65 × 155 head · 202 spike
Opening
Not stated
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
Color
3000K
Finish
Matte Black
ILT-GL1D · Garden Spikes & In-Ground
Ground Landscape Spotlight
GU10 · 5–8W · IP65 · 3000K · ground spike
A compact adjustable spike light for planting, façades and landscape focal points.
- Lamp
- GU10 · 5–8W
- Input
- 120V
- Light color
- 3000K
- Beam
- 24° / 36° / 60°
- Head
- Ø65 × 155 mm
- Spike
- 202 mm
- Rating
- IP65
- Body
- Aluminum
- Mounting
- Ground spike
- Finish
- Marine-grade available
Product intelligence · 2026
Technical dossier
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
Placement study · diagrammatic
01 / Application
Focused light inside the planting
Set the spike behind low planting, aim toward the trunk or canopy, and keep the beam away from windows and primary sightlines. Leave service access around the cable entry.
- Mounting
- Ground spike, deck sleeve or project-specific base by model
- Typical placement
- Palms, specimen trees, shrubs, façades and landscape focal points
- Light source
- GU10 · 5–8W
- Control
- Not stated
- Protection
- IP65
- Input
- 120V
Catalog values on fileNot required or not statedProtection data on file
03 / Construction
Conceptual assembly
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
01
Aiming hood
02
Optic and light source
03
Sealed fixture head
04
Cable gland / flexible lead
05
Ground spike or mounting base
Conceptual assembly · verify the manufacturer's final construction, driver and service method before procurement or installation.
Specifications
| Model | Power | Size (mm) | Beam | Color temp | IP | Input |
|---|---|---|---|---|---|---|
| ILT-GL1D | GU10 · 5–8W | Ø65 × 155 head · 202 spike | 24° / 36° / 60° | 3000K | IP65 | 120V |
