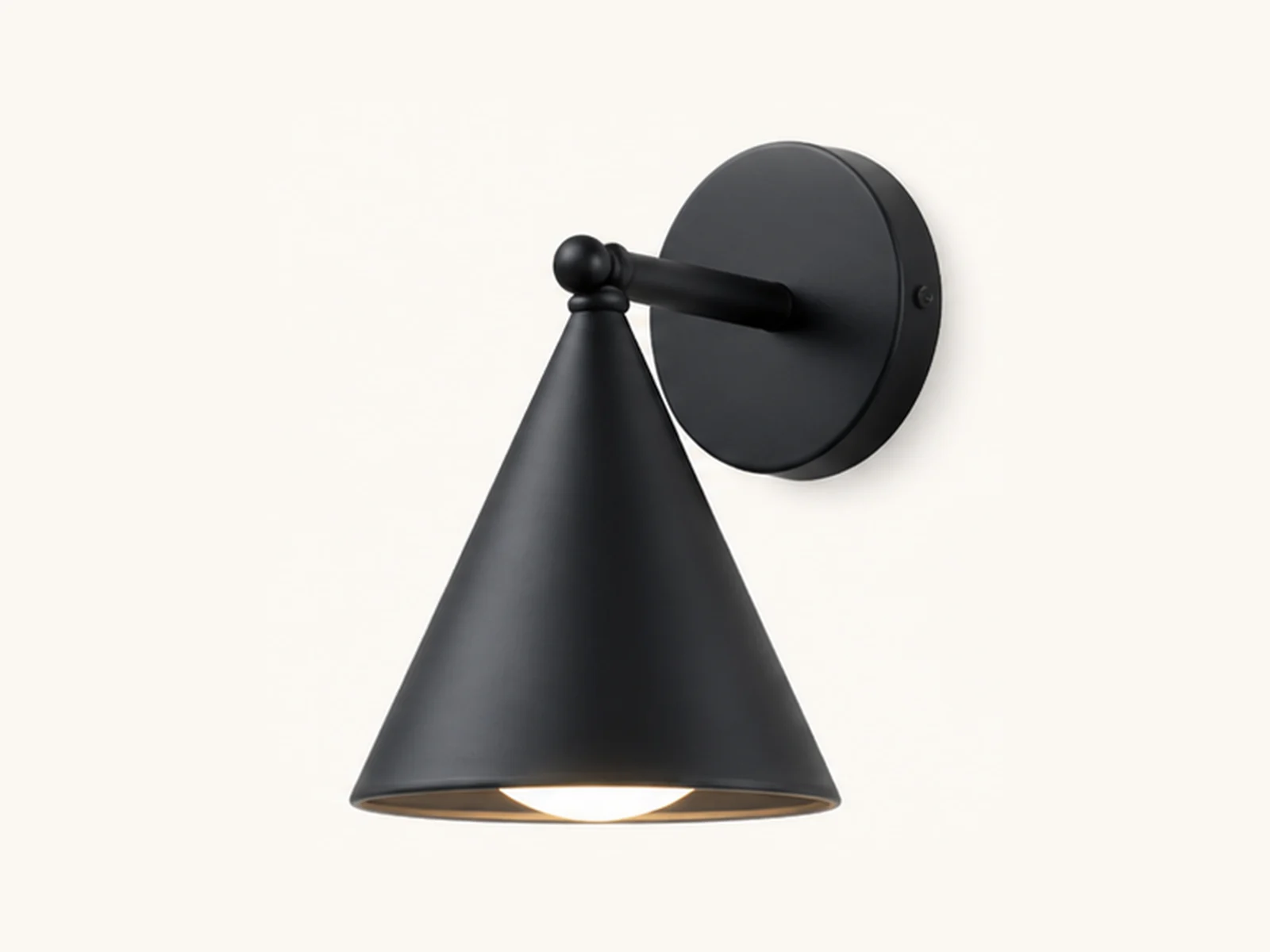

Not to scale
02 / Dimensions
Measured information
IL-WL-DSK962-BK
Body
244 H × 244 P · 171 W shade
Opening
Not stated
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
Color
3000K
Finish
Matte Black
IL-WL-DSK962-BK · Outdoor Wall Lights
Dark-Sky Cone Downlight
13W LED · 3000K · shielded downlight · 244 mm H × 244 mm P
A shielded matte-black cone that directs all warm light downward for dark-sky-conscious use — porches, paths and garden walls. Downlight criterion per source; no formal certification is claimed.
- Overall size
- 9.625 in H × 9.625 in P · 244 × 244 mm
- Shade / backplate
- 6.75 in W · 4.375 in Ø · 171 mm · Ø111 mm
- Power
- 13W integrated LED
- Input
- 110–120V
- Light color
- 3000K
- Control
- Non-dimmable
- Construction
- Premium metal · matte black
- Mounting
- Surface wall · no cutout
- Applications
- Porch · path · garden wall · dark-sky use
Product intelligence · 2026
Technical dossier
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
Placement study · diagrammatic
01 / Application
Light that belongs to the façade
Align the fixture with openings and material joints. Confirm the beam direction, mounting plate coverage and weather seal before the wall finish is closed.
- Mounting
- Exterior surface wall installation
- Typical placement
- Entries, columns, terraces, garage walls and façade rhythms
- Light source
- 13W
- Control
- Non-dimmable
- Protection
- Not stated
- Input
- 110–120V
Catalog values on fileNot required or not statedProtection data pending
03 / Construction
Conceptual assembly
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
01
Shield / decorative body
02
Optic or diffuser
03
Light engine or lamp
04
Weather gasket and thermal body
05
Mounting plate and electrical feed
Conceptual assembly · verify the manufacturer's final construction, driver and service method before procurement or installation.
Specifications
| Model | Power | Size (mm) | Color temp | Input |
|---|---|---|---|---|
| IL-WL-DSK962-BK | 13W | 244 H × 244 P · 171 W shade | 3000K | 110–120V |
