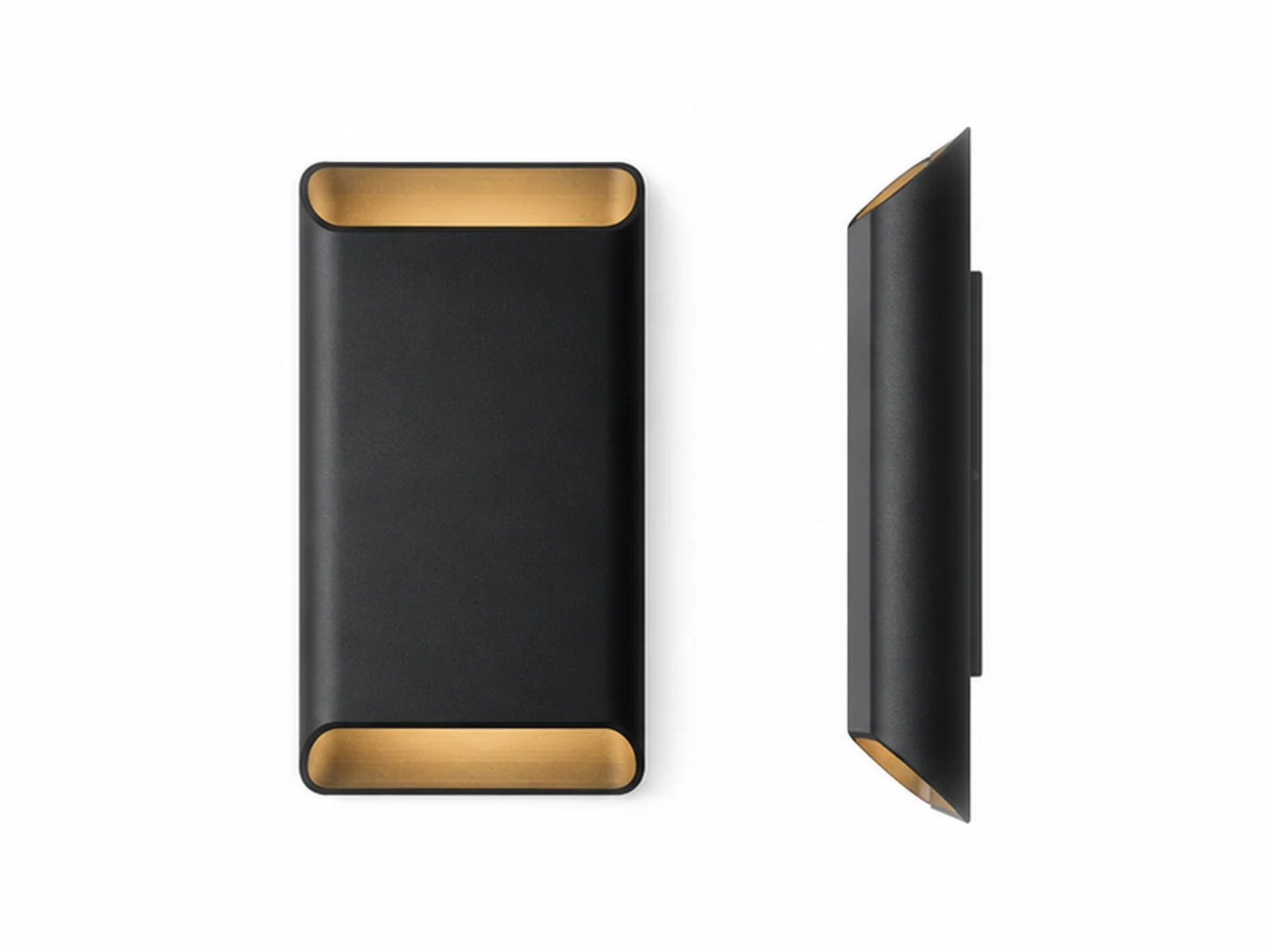

Not to scale
02 / Dimensions
Measured information
IL-WL-CMP9-UD
Body
229 × 152 × 38
Opening
Not stated
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
Color
3000K
Finish
Matte Black
IL-WL-CMP9-UD · Outdoor Wall Lights
Compact Bidirectional Sconce
2 independent LEDs · up / down · dimmable 5–99% · 229 × 152 × 38 mm
A shallow black wall block with two independent LED sources and balanced up/down beams — for corridors, entries, low walls and exteriors.
- Dimensions
- 9 × 6 × 1.5 in · 229 × 152 × 38 mm
- Emission
- Up / down
- Light source
- 2 independent LEDs
- Control
- Dimmable · 5–99%
- Construction
- Metal · matte black
- Mounting
- Surface wall · no cutout
- Applications
- Corridor · entry · low wall · exterior
- Data status
- Power / CCT / IP pending factory confirmation
Product intelligence · 2026
Technical dossier
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
Placement study · diagrammatic
01 / Application
Light that belongs to the façade
Align the fixture with openings and material joints. Confirm the beam direction, mounting plate coverage and weather seal before the wall finish is closed.
- Mounting
- Exterior surface wall installation
- Typical placement
- Entries, columns, terraces, garage walls and façade rhythms
- Light source
- 2 independent LEDs
- Control
- Dimmable · 5–99%
- Protection
- Not stated
- Input
- Not stated
Catalog values on fileNot required or not statedProtection data pending
03 / Construction
Conceptual assembly
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
01
Shield / decorative body
02
Optic or diffuser
03
Light engine or lamp
04
Weather gasket and thermal body
05
Mounting plate and electrical feed
Conceptual assembly · verify the manufacturer's final construction, driver and service method before procurement or installation.
Specifications
| Model | Power | Size (mm) | Notes |
|---|---|---|---|
| IL-WL-CMP9-UD | 2 independent LEDs | 229 × 152 × 38 | Wattage, CCT and IP pending factory confirmation |
