Color temperature
2700K
Finish
Matte Black

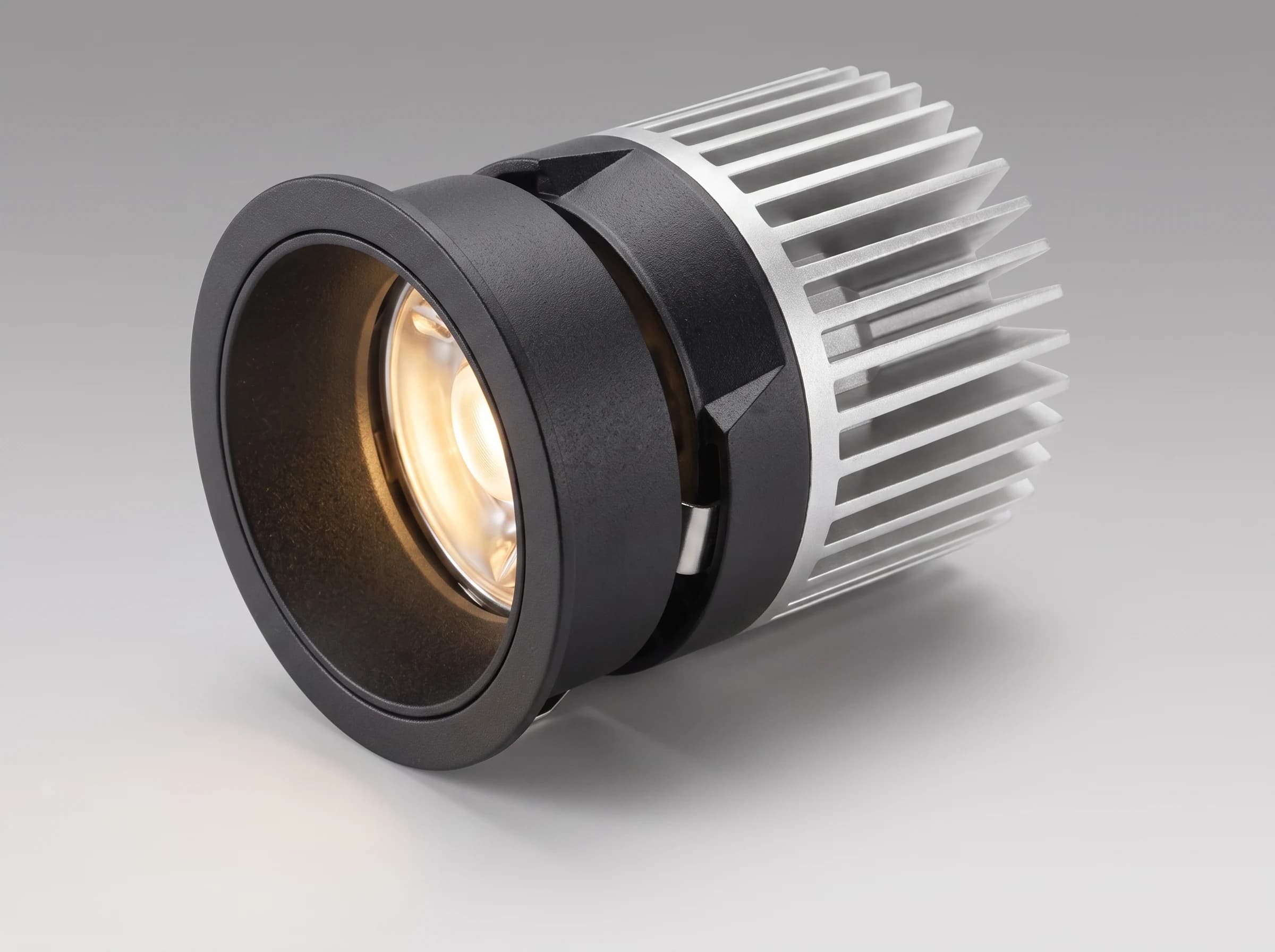

JG-55 – JG-145 · Wall-Wash & Multi-Head
5–55W · 15°/24°/38°/55° · framed / trimless / multi-head
The flagship wall-washer family — finned heat-sink bodies from 55mm to 145mm, framed or trimless, single to quad heads.
Product intelligence · 2026
Application, dimensional information and construction logic—organized consistently across the complete collection.
Specified fixture
01 / Application
Set the fixture back from the wall and maintain regular spacing so the beam overlaps cleanly. The wall—not the aperture—should be the visual event.
02 / Dimensions
JG-55 round
Body
Ø62 × 75
Opening
Not stated
JG-55 square
Body
62 × 62 × 75
Opening
Not stated
JG-55 round trimless
Body
Ø77 × 75
Opening
Not stated
JG-55 square trimless
Body
77 × 77 × 75
Opening
Not stated
+ 19 additional scheduled variants below
Values are reproduced exactly from the active product record. The image is diagrammatic; scheduled values govern.
03 / Construction
A product-family breakdown for design coordination. It explains the construction logic without claiming a factory engineering drawing.
| Model | Power | Size (mm) | Notes |
|---|---|---|---|
| JG-55 round | 5–7W | Ø62 × 75 | — |
| JG-55 square | 5–7W | 62 × 62 × 75 | — |
| JG-55 round trimless | 5–7W | Ø77 × 75 | — |
| JG-55 square trimless | 5–7W | 77 × 77 × 75 | — |
| JG-55 2-head square | 2×(5–7W) | 94 × 65 × 75 | — |
| JG-55 3-head square | 3×(5–7W) | 146 × 65 × 75 | — |
| JG-55 4-head square | 4×(5–7W) | 196 × 65 × 75 | — |
| JG-75 round | 12–15W | Ø85 × 90 | — |
| JG-75 square | 12–15W | 85 × 85 × 90 | — |
| JG-75 round slim | 5–7W | Ø80 × 35 | ultra-thin |
| JG-75 round trimless | 12–15W | Ø98 × 90 | — |
| JG-75 2-head square | 2×(12–15W) | 158 × 90 × 95 | — |
| JG-75 3-head square | 3×(12–15W) | 230 × 90 × 95 | — |
| JG-95 round | 20–25W | Ø104 × 115 | — |
| JG-95 square | 20–25W | 104 × 104 × 115 | — |
| JG-95 round trimless | 20–25W | Ø120 × 115 | — |
| JG-95 2-head square | 2×(20–25W) | 196 × 104 × 115 | — |
| JG-120 round | 30–35W | Ø140 × 149 | — |
| JG-120 square | 30–35W | 140 × 140 × 149 | — |
| JG-120 round trimless | 30–35W | Ø145 × 149 | — |
| JG-145 round | 50–55W | Ø160 × 179 | — |
| JG-145 square | 50–55W | 160 × 160 × 179 | — |
| JG-145 trimless | 50–55W | Ø170 × 179 | — |
